    Understanding Spanning Tree: The Backbone of Network Redundancy

    In the world of computer networks, maintaining efficiency and preventing loops are crucial for seamless data transmission. This is where the concept of a spanning tree comes into play. By understanding the basics of spanning trees, network administrators can design robust and efficient networks. This article delves into what spanning trees are, their importance, and how they function, offering a comprehensive guide for both beginners and seasoned professionals.



    What is a Spanning Tree?

    A spanning tree is a subgraph of a network that includes all the vertices with the minimum possible number of edges, ensuring there are no cycles or loops. Essentially, it spans across all the nodes, creating a tree-like structure without any closed loops, which is crucial for network reliability and performance.



    Importance of Spanning Trees in Networking

    In networking, spanning trees are vital because they help prevent network loops. Loops can cause broadcast storms, multiple frame copies, and MAC table instability, leading to degraded network performance and potential downtime. By using spanning trees, networks can maintain redundancy without the risk of loops.



    The Spanning Tree Protocol (STP)

    The Spanning Tree Protocol (STP) is a network protocol designed to ensure a loop-free topology for Ethernet networks. Developed by Dr. Radia Perlman and standardized as IEEE 802.1D, STP is critical for creating a reliable and efficient network.



    How STP Works

    STP operates by identifying and disabling redundant paths in the network. Here’s a step-by-step breakdown of how STP works:

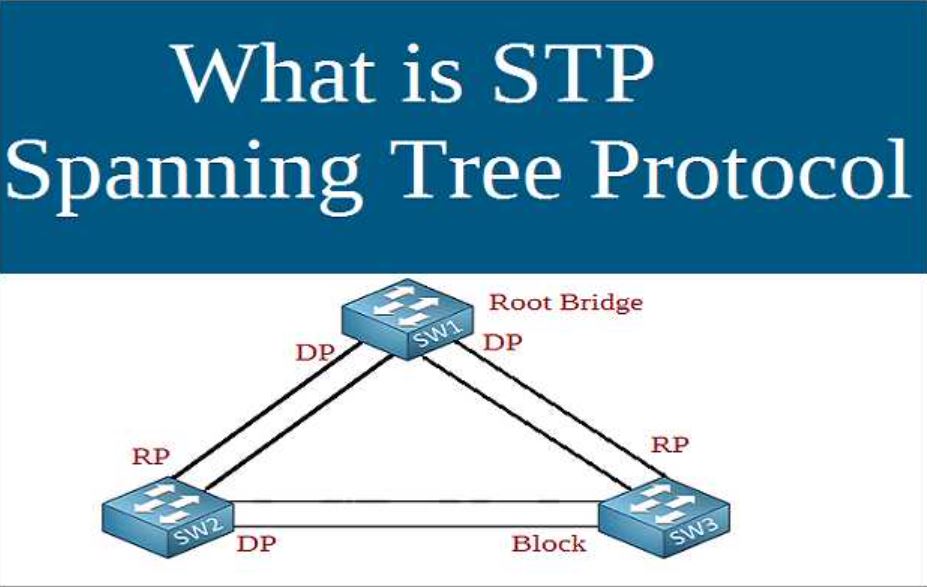

    Root Bridge Election: STP begins by electing a root bridge, which serves as the central reference point. The bridge with the lowest bridge ID (a combination of priority and MAC address) is chosen as the root bridge.



    Path Cost Calculation: Each switch in the network calculates the path cost to the root bridge. Path cost is based on the bandwidth of the links; higher bandwidth links have lower path costs.



    Designated and Non-Designated Ports: For each network segment, STP designates one port as the designated port, which is the port with the lowest path cost to the root bridge. All other ports become non-designated ports and are blocked to prevent loops.



    Bridge Protocol Data Units (BPDUs): Switches communicate using BPDUs to share information about bridge IDs and path costs. These BPDUs help maintain the network topology and update it if any changes occur.



    Port States: STP ports transition through several states – blocking, listening, learning, and forwarding – to ensure a stable and loop-free network.



    Enhancements to STP: RSTP and MSTP

    While STP laid the groundwork, advancements were necessary to address its limitations, leading to the development of Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP).



    Rapid Spanning Tree Protocol (RSTP)

    RSTP, standardized as IEEE 802.1w, provides faster convergence compared to STP. It introduces new port roles and states, allowing for quicker recovery from topology changes. RSTP is backward compatible with STP, ensuring smooth transitions in mixed environments.



    Multiple Spanning Tree Protocol (MSTP)

    MSTP, standardized as IEEE 802.1s, enables multiple spanning tree instances within a single network. This allows for load balancing and more efficient use of network resources. MSTP maps VLANs to spanning tree instances, optimizing traffic flow and enhancing network performance.



    Implementing Spanning Trees in Network Design

    Implementing spanning trees in a network involves careful planning and configuration. Here are key steps to consider:



    Network Assessment: Evaluate the network topology, including the number of switches, VLANs, and potential points of redundancy.



    Configure Bridge Priorities: Set bridge priorities to influence the selection of the root bridge. By default, all switches have the same priority, but adjusting this can optimize network performance.



    Adjust Path Costs: Modify path costs to influence the selection of designated ports. This can help ensure optimal paths are chosen based on network requirements.



    Enable STP Features: Enable STP, RSTP, or MSTP on switches based on network needs. Ensure compatibility and proper configuration across all devices.



    Monitor and Maintain: Regularly monitor BPDU traffic and port states to ensure the spanning tree topology remains stable. Be prepared to troubleshoot and adjust configurations as the network evolves.



    Troubleshooting Spanning Tree Issues

    Despite careful planning, issues can arise in spanning tree implementations. Common problems include:



    Root Bridge Misconfiguration: Incorrect bridge priorities can lead to suboptimal root bridge selection, affecting network performance.

    BPDU Inconsistencies: Inconsistent BPDU reception can cause topology instability. Ensure all switches are correctly configured to send and receive BPDUs.

    Port State Anomalies: Unexpected port state changes can disrupt network connectivity. Regularly check port states and investigate any anomalies promptly.

    Best Practices for Troubleshooting

    Use Network Management Tools: Leverage network management tools to monitor STP activity and identify issues quickly.

    Check Firmware and Software Versions: Ensure all network devices are running compatible and up-to-date firmware and software.

    Document Network Topology: Maintain accurate documentation of the network topology and spanning tree configurations to assist in troubleshooting.

    Conclusion

    Understanding and implementing spanning trees is fundamental for creating efficient, reliable, and loop-free networks. The Spanning Tree Protocol and its enhancements, RSTP and MSTP, provide powerful tools for network administrators to maintain redundancy while preventing loops. By following best practices in configuration and troubleshooting, networks can achieve optimal performance and resilience.



    In the ever-evolving landscape of networking, staying informed about spanning tree concepts and protocols is crucial. Whether you’re designing a new network or managing an existing one, mastering spanning trees will ensure your network remains robust and efficient.
